Rear Lid Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the screw -2- inside the handle recess (1.5 Nm).

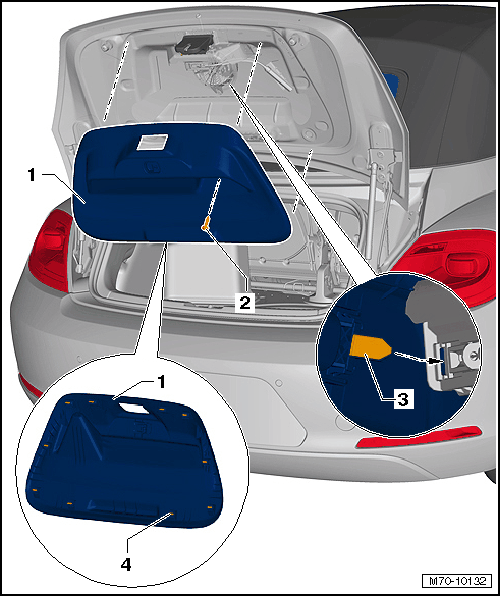

Fig 1: Identifying Rear Lid Trim Panel And Bolt
GWWM70-10132Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim -1- with the : T10383  from the mounts in the rear lid.
