Rear Lid Lock Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Rear Lid Lower Trim Panel, Removing, Sedan. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Rear Lid Trim Panel, Removing, Convertible. Refer to REAR LID TRIM PANEL, REMOVING AND INSTALLING .

-- Slide the trim -1- off the rear lid lock using the : 3409 .

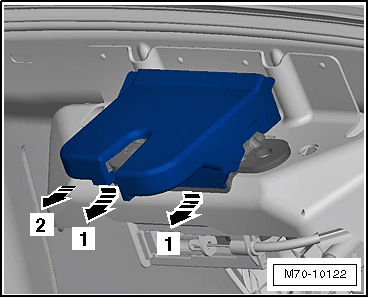

Fig 1: Identifying Rear Lid Lock Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim from the latch in direction of -arrow 2-.
