Luggage Compartment Side Trim Panel, Removing And Installing, Sedan: Removing

-- Remove the lock carrier cover. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the side luggage compartment cover support. Refer to REAR SHELF COMPARTMENT, REMOVING AND INSTALLING .

Only for the Right Luggage Compartment Trim Panel for Vehicles with Subwoofer

-- Remove the subwoofer. Refer to SUBWOOFER -R211-, REMOVING AND INSTALLING .

Continuation for All Vehicles

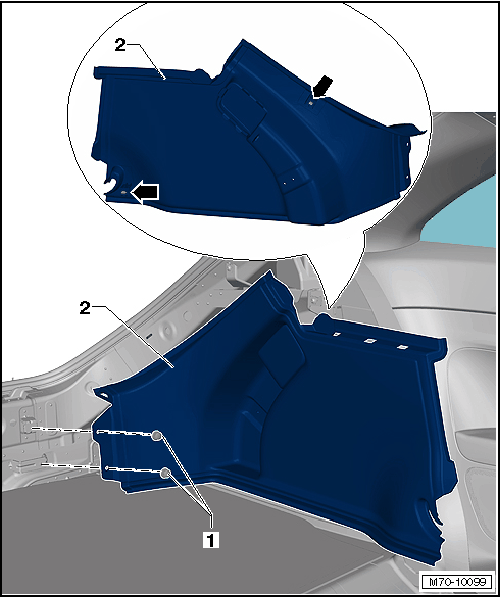

Fig 1: Identifying Luggage Compartment Side Trim Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the expanding clip -1- with the : T10236  .

-- Loosen the trim panel -2- from the clip connection point -arrows- and then remove it.
