Lock Carrier Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the luggage compartment floor panel. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

-- Remove the emergency triangle, if equipped.

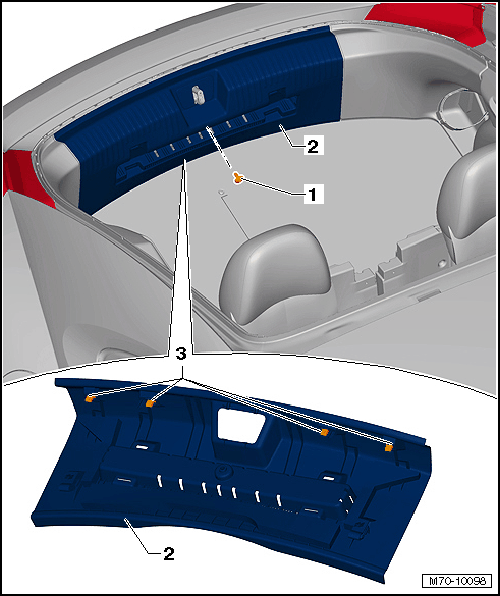

Fig 1: Identifying Bolt, Cover And Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the lock carrier cover.

-- Remove the bolt -1-.

-- Remove the cover -2- from the lower area of the body.

-- Remove the cover -2- and the clips -3- upward from the lock carrier.
