Side Defroster Vent, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

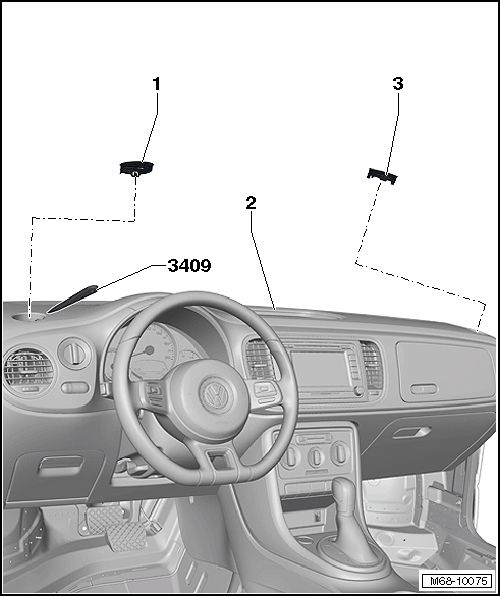

Fig 1: Identifying Left And Right Vent
GWWM68-10075Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the left vent -1- using the : 3409  .

-- Remove the left vent -1- from the instrument panel -2-.

-- The process for removing the right vent -3- is identical to the left vent -1-.
