Outer Instrument Panel Vent, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

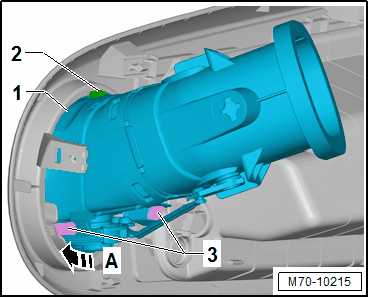

Left Instrument Panel Vent

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vent temperature sensor. Refer to ADDITIONAL COMPONENTS FOR CONTROL AND REGULATION .

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE LEFT INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Release the clips -3- of the instrument panel vent -1- using the : 3409 .

-- Remove the instrument panel vent from the instrument panel cover in direction of -arrow A-.

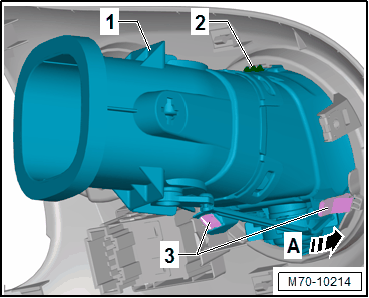

Right Instrument Panel Vent

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vent temperature sensor. Refer to ADDITIONAL COMPONENTS FOR CONTROL AND REGULATION .

-- Release the clips -3- of the instrument panel vent -1- using the Trim Removal Wedge: 3409 .

-- Remove the instrument panel vent from the instrument panel cover in direction of -arrow A-.
