Instrument Panel, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

NOTE:

Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.

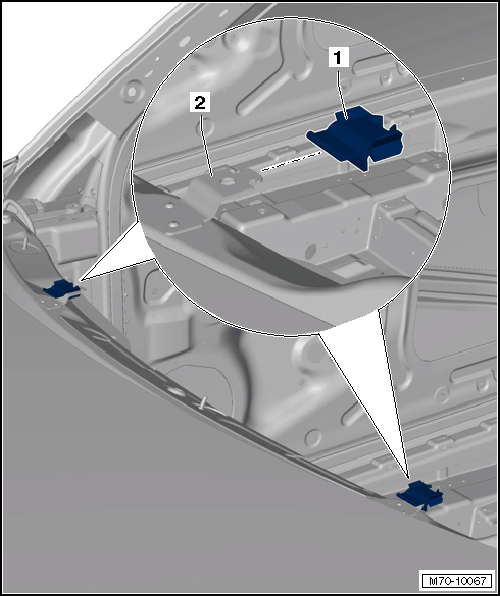

Fig 1: Identifying Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the mount -1- to the retaining strap on the body -2-.

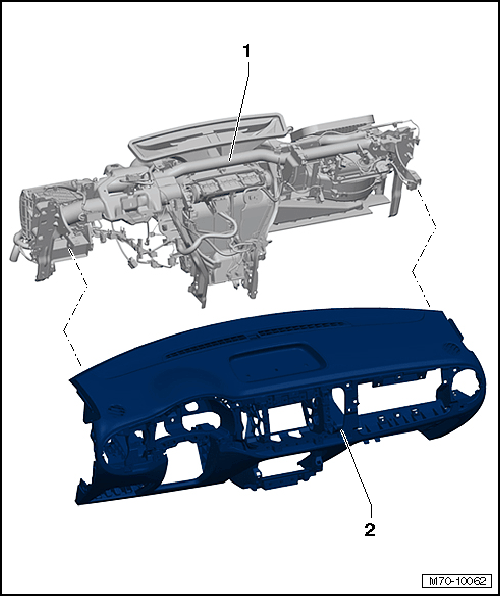

Fig 2: Identifying Instrument Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mount the instrument panel -2- onto the instrument panel crossmember -1- with a second technician.

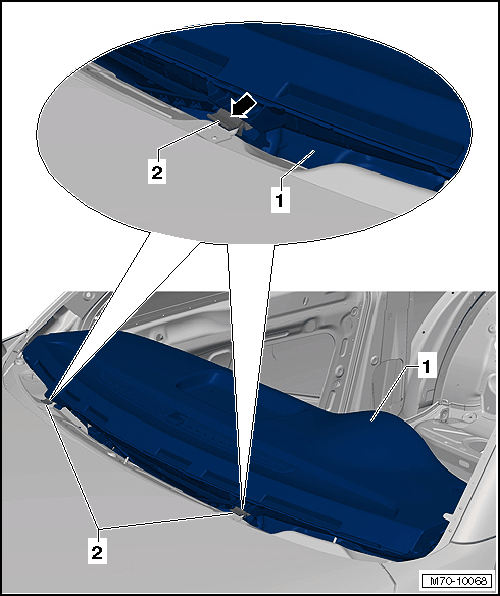

Fig 3: Identifying Instrument Panel And Windshield Transition Area

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the instrument panel -1- into the mounts in the windshield transition area -2- -arrow-.

-- Further installation is in the reverse order of removal.
