Instrument Cluster Frame, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Move the steering wheel to the lowest position.

-- Adjust the steering wheel depth (reach) so it is in the fully extended position.

-- Loosen the gap cover -3- from the mounts on the upper steering column trim panel -2- using the : 3409  . It is not necessary to remove the complete steering column trim.

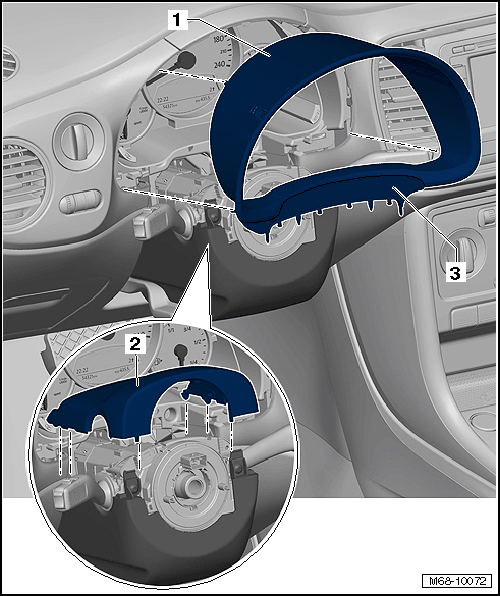

Fig 1: Identifying Instrument Cluster Trim Panel And Upper Steering Column Trim
GWWM68-10072Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the instrument cluster trim panel -1- from the instrument panel.
