Front Passenger Side Mounting Bracket, Removing And Installing: Removing

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the instrument panel central tube INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .

-- Remove the bolts -1- (20 Nm).

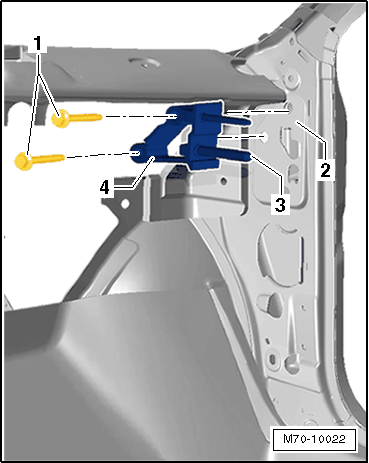

Fig 1: Identifying Passenger Side Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front passenger side bracket -4- from the inner A-pillar -2-.
