Convertible Top TENSIONING Strap Bracket, Removing And Installing: Removing

-- Pry the cap -1- off using the : 80-200  in direction of -arrow A- and remove.

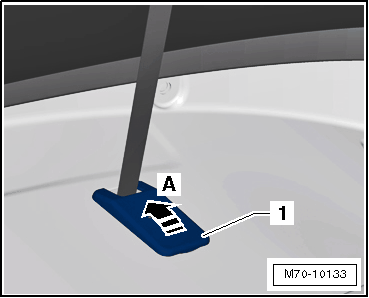

Fig 1: Identifying Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the lever -1- in direction of -arrow- and pull the tensioning strap -2- out of the bracket.

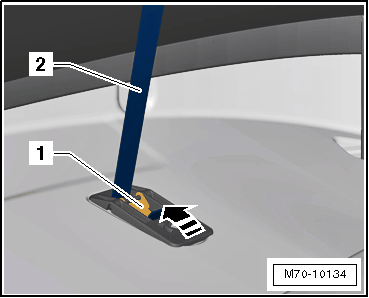

Fig 2: Identifying Lever And Tensioning Strap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the rear lid.

-- Squeeze the tabs -arrows-.

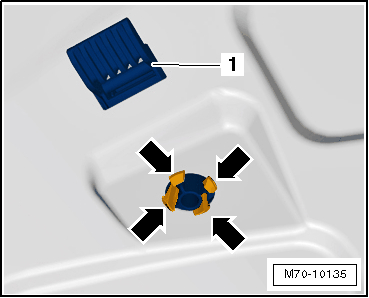

Fig 3: Identifying Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the bracket -1- for the tensioning strap into the convertible top compartment and disengage it.
