Telephone Microphone -R38-, REMOVING AND INSTALLING, COUPE: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the Front Interior Lamp -W1-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- Release and disconnect the connector -2-.

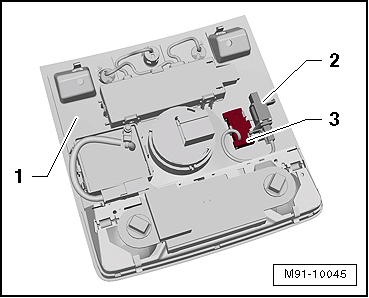

Fig 1: Identifying Connector, Telephone Microphone And Front Interior Lamp
GWWM91-10045Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the Telephone Microphone -R38- -3- out of the Front Interior Lamp -WX1- -1- using a small screwdriver.
