Telephone Microphone -R38-, REMOVING AND INSTALLING, CABRIOLET: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the Front Interior Lamp -W1-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- Release and disconnect the connector -1-.

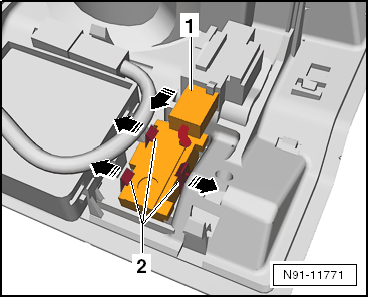

Fig 1: Identifying Telephone Microphone With Hook And Connector
GWWN91-11771Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the hooks -2- in the direction of the -arrow- and remove the Telephone Microphone -R38- from the Front Interior Lamp -W1-.
