TV Tuner, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Move the right front seat into its highest position and the move it all the back.

-- Switch off the ignition and all electrical equipment and remove the ignition key.

-- Remove the lower cover -arrow- from the seat.

Fig 1: Identifying Lower Seat Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- from the TV Tuner -R78- -1-.

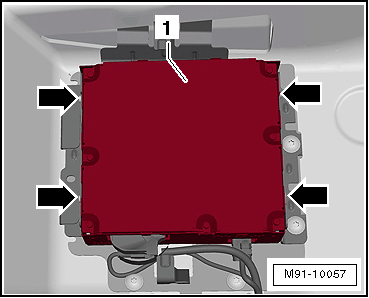

Fig 2: Identifying TV Tuner And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector from the TV Tuner -R78- -1-.

-- Remove the TV Tuner -R78-.
