Overview - TV System

The TV Tuner -R78- receives digital and pay TV transmissions.

As "Display" functions as the Front Information Display Control Head -J685-

The TV Card Reader -R204- is connected to the TV Tuner -R78-.

The TV Tuner -RX6- is located under the right front seat.

Familiarity with the function and operation is needed if there are customer concerns. Refer to the Owner's Manual.

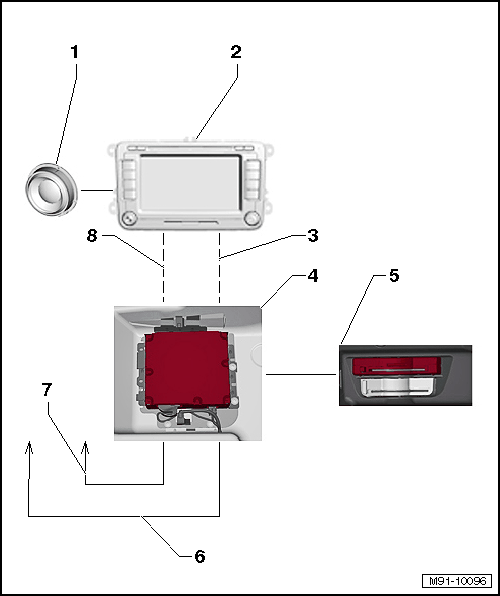

Fig 1: Identifying TV System Components Overview (Japan, QV2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Sound System
   • Sound System. Refer to SOUND SYSTEM .
2. Information Electronics Control Module 1 -J794-
3. CAN Bus
4. TV Tuner -R78-
   • Removing and Installing. Refer to TV TUNER, REMOVING AND INSTALLING .
5. TV Card Reader -R204-
   • In the glove compartment
   • Removing and Installing. Refer to TV CARD READER, REMOVING AND INSTALLING .
6. Antenna TV1
   • Coupe: inside the rear window
   • Cabriolet: inside the windshield
   • Antenna systems. Refer to ANTENNA SYSTEMS .
7. Antenna TV2
   • Coupe: inside the rear window
   • Cabriolet: inside the windshield
   • Antenna systems. Refer to ANTENNA SYSTEMS .
8. Video and Audio Signal
