Overview - Sound System, Vehicles With 8 Speakers (8RM)

On vehicles with 8 speakers the sound system is comprised of the following components:

• One treble speaker each in the right and left front mirror triangles
• One bass speaker each in the left and right front doors
• Two speakers each (treble speaker and bass speaker) in the left and right rear side trim panel
• The Information Electronics Control Module 1 -J794- in the center instrument panel

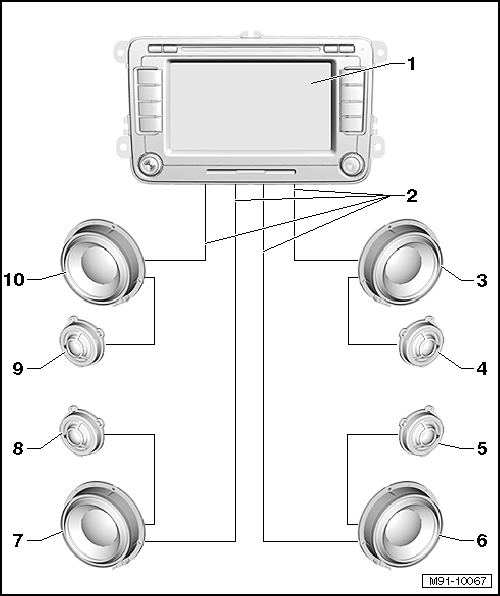

Fig 1: 8-Speaker System Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Information Electronics Control Module 1 -J794-
2. LF Wires
3. Right Front Bass Speaker -R23- in the Right Front Door
4. Right Front Treble Speaker -R22- inside the Right Mirror Triangle
5. Right Rear Treble Speaker -R16- in the Right Rear Side Trim Panel
6. Right Rear Bass Speaker -R17- in the Right Rear Side Trim Panel
7. Left Rear Bass Speaker -R15- in the Left Rear Side Trim Panel
8. Left Rear Treble Speaker -R14- in the Left Rear Side Trim Panel
9. Left Front Treble Speaker -R20- Inside the Left Mirror Triangle
10. Left Front Bass Speaker -R21- in the Left Front Door
