Emergency Call Button -E276-, REMOVING AND INSTALLING, COUPE: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

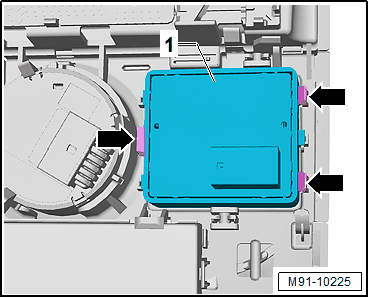

-- Release the retaining tabs -arrows- on the front interior lamp/reading lamp.

GWWM91-10225Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Emergency Call Button -E276- -1- from the front interior lamp/reading lamp.
