Emergency Call Button -E276-, REMOVING AND INSTALLING, CONVERTIBLE: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the lower roof frame trim panel. Refer to Roof Trim Panels .

-- Release the tabs -1- on the roof frame trim panel.

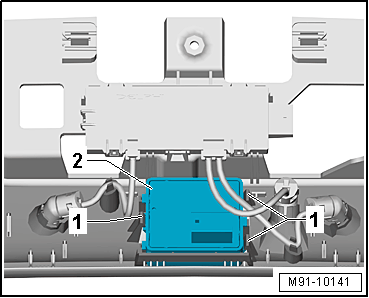

Fig 1: Identifying Tabs And Cellular Telephone Preparation Control Head

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Cellular Telephone Preparation Control Head -E508- -2- from the roof frame trim panel.
