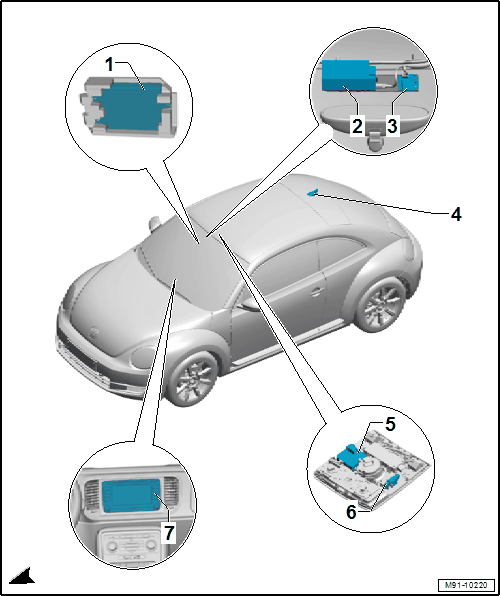

Component Location Overview - Mobile Online Services
WARNING: This page is about a different variant/trim than selected.
- Control Module for Emergency Call Module and Communication Unit -J949-
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Telephone Antenna -R65-
- Only on cabriolet with center windshield
- Removing and Installing. Refer to TELEPHONE ANTENNA, REMOVING AND INSTALLING, CONVERTIBLE .
- GPS Antenna -R50-
- Only on cabriolet with center windshield
- Removing and Installing. Refer to GPS ANTENNA, REMOVING AND INSTALLING, CONVERTIBLE .
- Roof Antenna -RX5-
- Only on Coupe
- With GPS Antenna -R50- and Telephone Antenna -R65-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Emergency Call Button -E276-
- In the Front Interior Lamp -W1-
- Removing and Installing. Refer to Emergency Call Button -E276-, REMOVING AND INSTALLING .
- Telephone Microphone -R38-
- In the Front Interior Lamp -W1-
- Removing and Installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- With Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
