Overview - MULTIFUNCTION Steering Wheel

WARNING: This page is about a different variant/trim than selected.

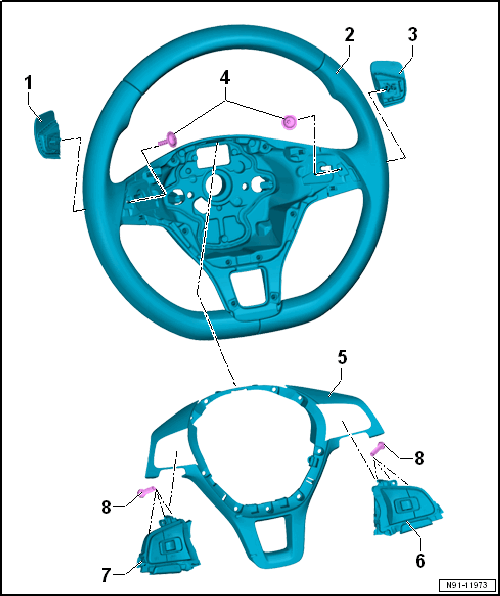

Fig 1: Exploded View Of - Multifunction Steering Wheel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tiptronic Downshift Button on Steering Wheel -E439-
- Removing and Installing. Refer to TIPTRONIC DOWNSHIFT/UPSHIFT BUTTON ON STEERING WHEEL -E439- / -E438-, REMOVING AND INSTALLING .
Multifunction Steering Wheel
Tiptronic Upshift Button on Steering Wheel -E438-
- Removing and Installing. Refer to TIPTRONIC DOWNSHIFT/UPSHIFT BUTTON ON STEERING WHEEL -E439- / -E438-, REMOVING AND INSTALLING .
Screw
- 1 Nm
- Quantity: 2
Decorative Trim
Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to RIGHT/LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
Left Multifunction Buttons on Steering Wheel -E440-
- Removing and Installing. Refer to RIGHT/LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
Screw
- 1 Nm
- Quantity: 6
