Vehicle GPS Antennas, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

The vehicle GPS antennas are bonded to the bumper cover.

-- Release and disconnect the connectors -2 and 3-.

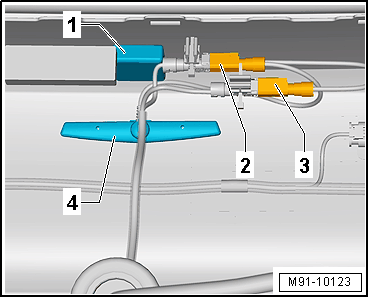

Fig 1: Identifying GPS Antennas

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vehicle GPS antennas -1 and 4- from the bumper cover using a suitable tool.
