Telephone Antenna, Removing And Installing, Convertible: Removing

WARNING: This page is about a different variant/trim than selected.

-- Switch off the ignition and all electrical equipment and remove the ignition key.

-- Remove the lower roof frame trim panel. Refer to Roof Trim Panels .

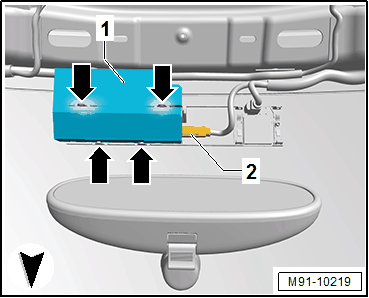

-- Carefully release the retainers -arrows- with a small screwdriver.

GWWM91-10219Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Telephone Antenna -R65- -1- from the mount.

-- Release and disconnect the connector -2-.
