Satellite Antenna -R170- IN INSTRUMENT PANEL, REMOVING AND INSTALLING, CABRIOLET: Removing

WARNING: This page is about a different variant/trim than selected.

-- Switch off the ignition and all electrical equipment and remove the ignition key.

Vehicles without Auxiliary Instruments

-- Remove the instrument panel center cap. Refer to Instrument Panel .

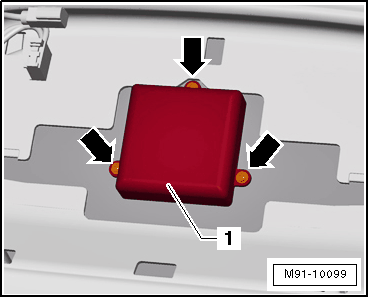

-- Remove the bolts -arrows- from the Satellite Antenna -R170- -1- and then remove the Satellite Antenna -R170- -1- upward.

Fig 1: Identifying Satellite Antenna With Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector.

Vehicles with Auxiliary Instruments

The Satellite Antenna -R170- is bolted to a mounting plate. The mounting plate is bolted to the auxiliary instruments trim.

-- Remove the trim for the auxiliary Instruments. Refer to OVERVIEW - INSTRUMENT CLUSTER .

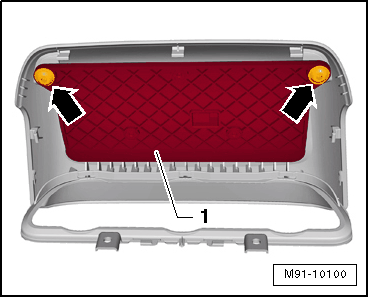

-- Remove the bolts -arrows- from the mounting plate -1- and remove the mounting plate from the trim.

Fig 2: Identifying Mounting Plate And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

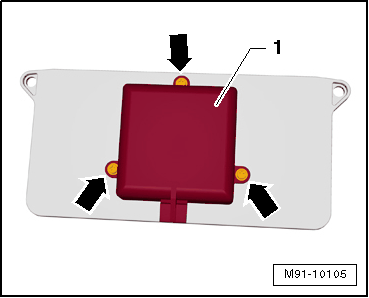

-- Remove the bolts -arrows- from the Satellite Antenna -R170- -1- and then remove the Satellite Antenna -R170- -1- upward.

Fig 3: Identifying Bolts And Satellite Antenna

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
