Roof Antenna, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Switch off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear lid trim panel. Refer to ROOF REINFORCEMENT, ATTACHING TO BODY .

Depending on the equipment level, the Roof Antenna -RX5- can have 1 to 3 wires. These are attached to the top of the rear lid -1 through 3-.

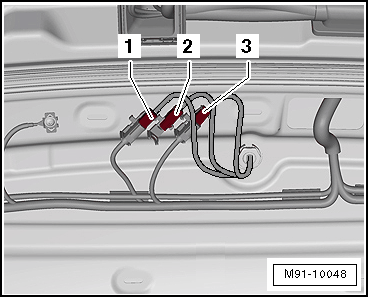

Fig 1: Identifying Antenna Wires

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -2- and free up the antenna wires up to the Roof Antenna -RX5-.

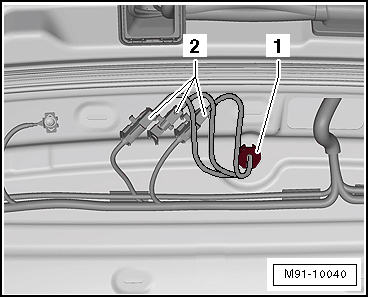

Fig 2: Identifying Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -1- and the Roof Antenna -RX5- upward.
