GPS Antenna, Removing And Installing, Convertible: Removing

WARNING: This page is about a different variant/trim than selected.

-- Switch off the ignition and all electrical equipment and remove the ignition key.

-- Remove the lower roof frame trim panel. Refer to Roof Trim Panels .

-- Open the tabs -arrows- with a small screwdriver and remove the GPS Antenna -R50- -2- from the mount.

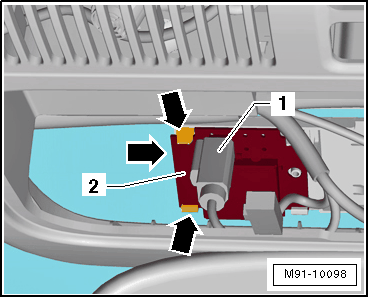

Fig 1: Identifying Connector, Tabs And GPS Antenna
GWWM91-10098Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector -1- from the GPS Antenna -R50- -2-.
