Component Location Overview - Antenna Systems, Coupe

WARNING: This page is about a different variant/trim than selected.

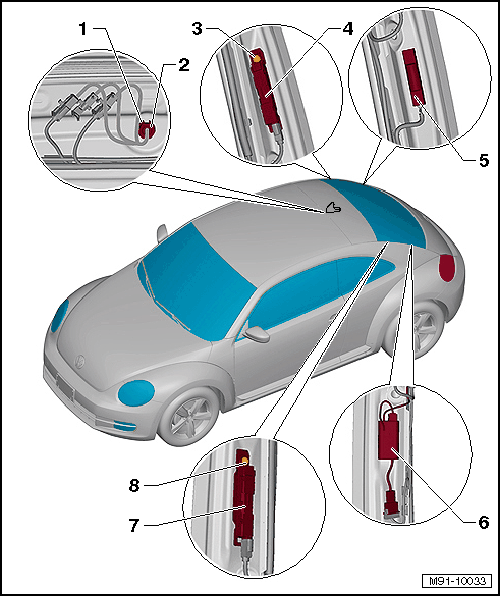

Fig 1: Identifying Antenna Systems, Sedan Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Roof Antenna -RX5-
- Depending on the vehicle equipment level:
  - GPS Antenna -R50-
  - Telephone Antenna -R65-
  - Satellite Antenna -R170-, only USA
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
Nut
- 7 Nm
Screw
- 2 Nm
Right Antenna Module -R109-
- AM (optional)/FM
- AM (optional)/FM/TV, Japan only
- Removing and Installing. Refer to Right Antenna Module -R109-, REMOVING AND INSTALLING, COUPE .
FM Frequency Filter in Negative Wire -R178-
- Removing and Installing. Refer to FM Frequency Filter in Negative Wire -R178-, REMOVING AND INSTALLING, COUPE .
FM Frequency Filter in Positive Wire -R179-
- Removing and Installing. Refer to FM Frequency Filter in Positive Wire -R179-, REMOVING AND INSTALLING, COUPE .
Left Antenna Module -R108-
- FM2/DAB
- FM2/TV, Japan only
- FM2, USA only
- Removing and Installing. Refer to Left Antenna Module -R108-, REMOVING AND INSTALLING, COUPE .
Screw
- 2 Nm
