Relay And Fuse Panels In E-Box, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Disconnect the Battery -A-. Refer to BATTERY, DISCONNECTING AND CONNECTING .

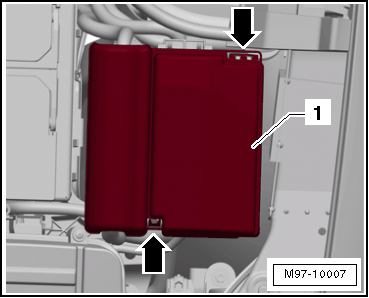

-- Press the catches in the direction of the -arrow- and remove the cover from the E-box -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

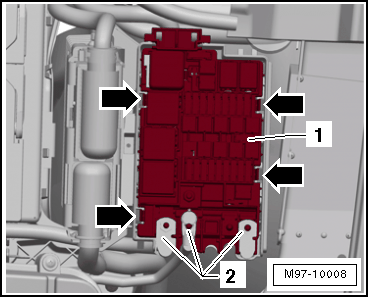

-- Disconnect the wires -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wires from the connecting pins.

-- Press the tabs -arrows- on the relay and fuse panel -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the relay and fuse panel -1- from the E-box.
