RELAY PANEL ON Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Open the driver side fuse panel cover.
-- Remove the relay from the relay panel.
NOTE:
The number of relays is dependent on vehicle equipment.

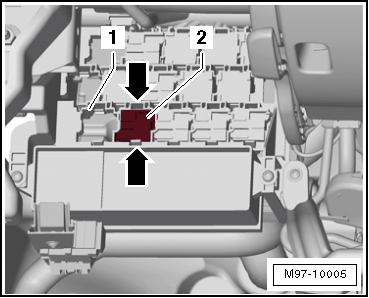

-- Clip the tabs -arrows- toward the outside and push the connector -2- through the relay panel -1-.
