Fuse Panel Behind Driver Side Instrument Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Disconnect the Battery -A-. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Open the driver side fuse panel cover.

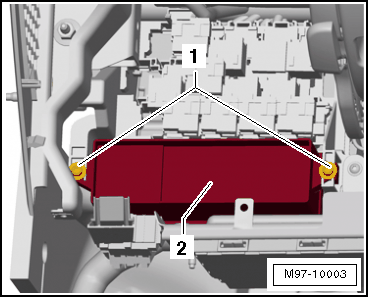

-- Remove the bolts -1- and guide the fuse panel -2- downward.

GWWM97-10003Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
