E-Box, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Disconnect the Battery -A-. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Press the catches in direction of -arrow- and remove the cover from the E-box -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the wires -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wires from the connecting pins.

-- Press the tabs -arrows- on the relay and fuse panel -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the relay and fuse panel -1- from the E-box.

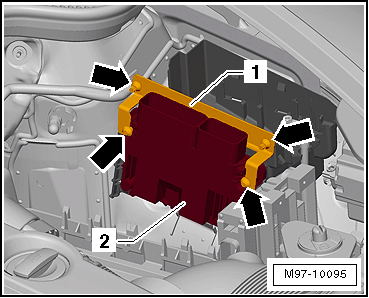

-- Remove the Engine Control Module -J623- -2- and bracket -1- off the E-box. To do this, first remove the shear bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine Control Module -J623- Removing and Installing. Refer to the appropriate service information .

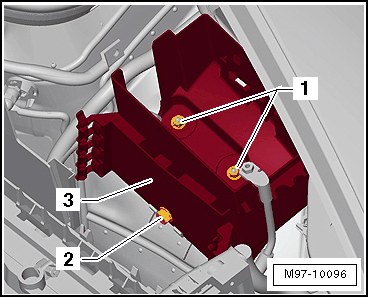

-- Remove the bolt -2- on the E-Box -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -1-.

-- Remove the E-box -3- from the vehicle.
