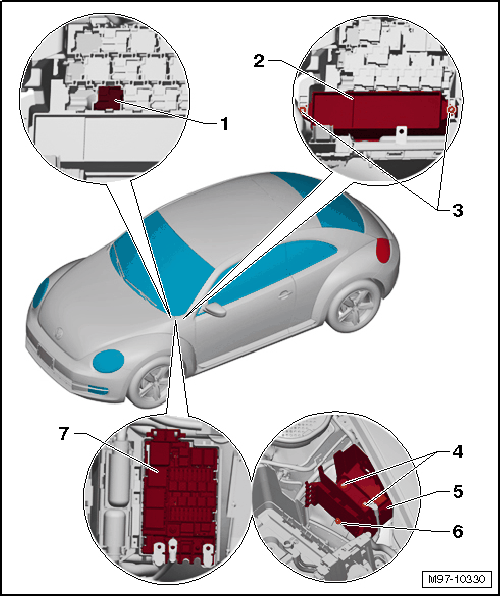

Component Location Overview - Relay Panels, Fuse Panels And E-Boxes

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Relay Panel on Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to RELAY PANEL ON Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
2. Fuse Panel Behind the Instrument Panel on the Driver Side
   • Removing and Installing. Refer to FUSE PANEL BEHIND DRIVER SIDE INSTRUMENT PANEL, REMOVING AND INSTALLING .
3. Bolt
   • 3 Nm
   • Quantity: 2
4. Nut
   • 6 Nm
   • Quantity: 2
5. E-Box
   • Removing and Installing. Refer to E-BOX, REMOVING AND INSTALLING .
6. Bolt
   • 6 Nm
7. Relay and Fuse Panel in the E-box
   • Removing and Installing. Refer to RELAY AND FUSE PANELS IN E-BOX, REMOVING AND INSTALLING .

No Illustration

• Nuts (wire connections to the E-box): 9 Nm
