Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- If equipped, remove the driver side footwell cover.

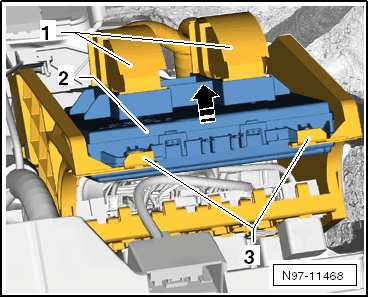

-- Loosen the locking mechanisms -3- and push the Vehicle Electrical System Control Module -J519- -2- in the direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Vehicle Electrical System Control Module -J519- -2- downward at the same time.

-- Release and disconnect the connectors -1-.
