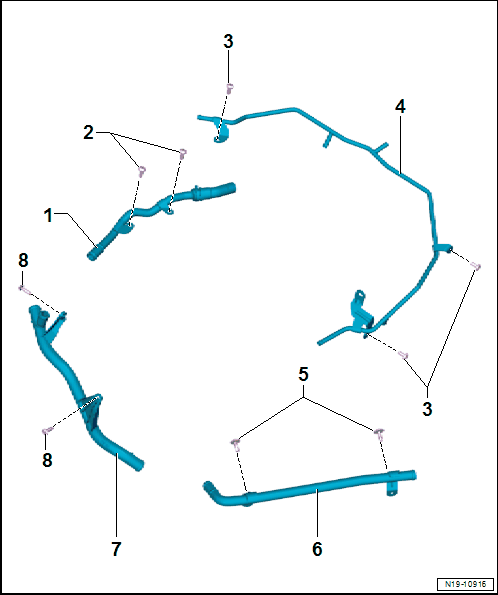

Overview - Coolant Pipes
WARNING: This page is about a different variant/trim than selected.
- Upper Coolant Pipe
- Removing and Installing. Refer to UPPER COOLANT PIPES, REMOVING AND INSTALLING .
- Bolts
- 9 Nm
- Bolt
- 9 Nm
- Coolant Line
- Bolts
- 9 Nm
- Coolant Pipe
- To fan shroud
- Only for vehicles with an auxiliary radiator
- Front Coolant Pipe
- Removing and Installing. Refer to COOLANT PIPES, REMOVING AND INSTALLING .
- Bolts
- 6 Nm
