Front Axle Toe, Adjusting: Notes

WARNING: This page is about a different variant/trim than selected.

Special Tools And Workshop Equipment Required

-- Loosen the lock nut -1-.

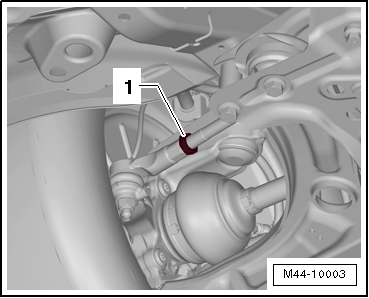

Fig 1: Identifying Front Axle TOE Lock Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Adjust the toe by turning the left and/or right tie rod.

Be Sure That Boots Are Not Twisted after Turning Tie Rods!

Twisted boots wear out quickly.

-- Tighten lock nut -1-.

-- Check toe value again.

Setting may change slightly after lock nut -1- is tightened.

However, if the measured toe value lies within the tolerance, the adjustment is correct.
