Front Axle Camber, Adjusting: Notes

WARNING: This page is about a different variant/trim than selected.

Special Tools And Workshop Equipment Required

Torque Wrench 1332 40-200 Nm:VAG1332

NOTE:

Correct the camber according to Body Collision only. Camber corrections are not possible. Moving the subframe can also adjust it.

Slide subframe only toward left or right, under no circumstances in or against direction of travel!

-- Remove the lower noise insulation. Refer to NOISE INSULATION (CONVERTIBLE) / NOISE INSULATION, REMOVING AND INSTALLING (CONVERTIBLE) .

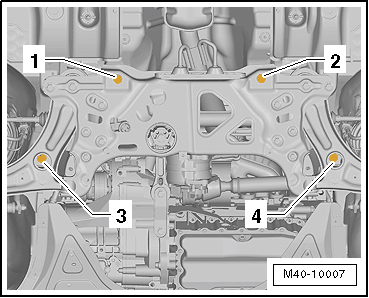

-- Loosen the subframe bolts -1 through 4- on the body.

Fig 1: Identifying Subframe Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

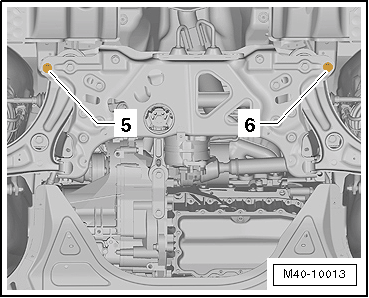

-- Loosen the subframe bolts -5 and 6- on the body.

Fig 2: Identifying Subframe Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Adjusting the camber is limited by the subframe hole tolerances. If the specified value is not reached by moving the subframe, the subframe and the assembly must be checked. Refer to COLLISION VEHICLE EVALUATION CHECKLIST .

-- By moving the subframe, only the specified value of the camber can be adjusted.

-- Bolt on subframe to body with additional torque angle using new bolts.

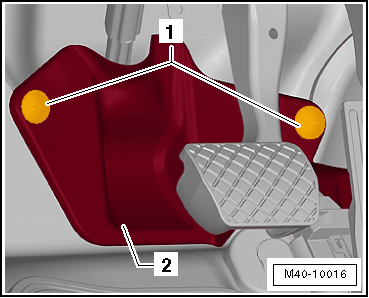

-- Remove the bolts -1- and cover -2-.

Fig 3: Identifying Footwell Trim Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

There must be at least 5 mm of free space all around between universal joint -1- and cutout of bulkhead -2-.

Fig 4: Identifying Universal Joint And Bulkhead

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
