8 J X 20 ET48
WARNING: This page is about a different variant/trim than selected.
NOTE:
Always pay attention to the wheel/tire allocations to the respective engine types which are listed in the overview table.
| Explanation of specifications on disc wheels: | Refer to GENERAL INFORMATION . |
| Tightening specifications for wheel bolts: | Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS . |
| Pitch circle diameter: | 112 mm |
| Number of wheel bolt holes: | 5 |
CAUTION:
A 235/35 R 20 92V/W tire on the 8 J x 20 ET 48 Rim Is Permitted Only for Vehicles with a Multi-Link Suspension.

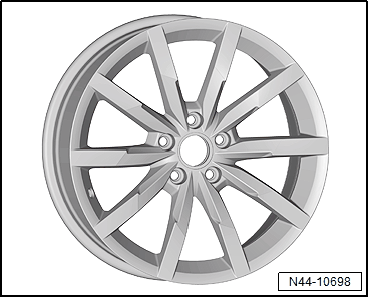

5C0 601 025 AT - Aluminum Rim "MONTERREY"
| Dimension: | 8 J x 20 |
| Offset in mm: | 48 |
| Wheel load in kg: | 580 |
