7 J X 17 ET43

WARNING: This page is about a different variant/trim than selected.
NOTE:

Always pay attention to the wheel/tire allocations to the respective engine types which are listed in the overview table.

Explanation of specifications on disc wheels: Refer to GENERAL INFORMATION .
Tightening specifications for wheel bolts: Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

5C0 601 025 F, 5C0 601 025 CH - aluminum rim "TALAIA"

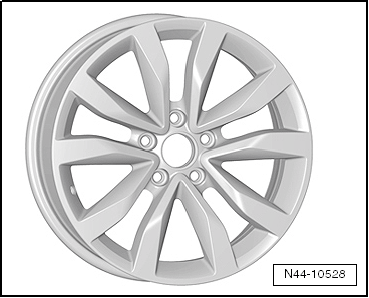

Fig 1: Identifying 5C0 601 025 F - Wheel
GWWN44-10528Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 565

5C0 601 025 BR - "DENIM" aluminum rim

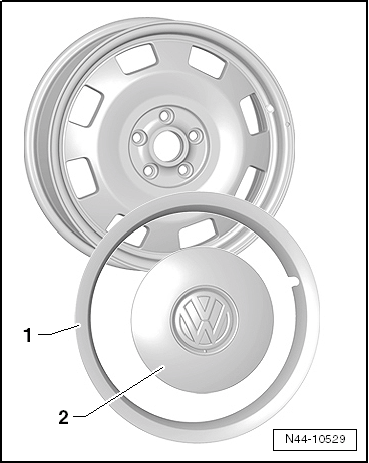

Fig 2: Identifying 5C0 601 025 G Wheel, Rim 5C0 601 157 A & Wheel Cover 5C0 601 149 D
GWWN44-10529Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rim 5C0 601 025 G is used together with rim decorative ring -1- and wheel cover -2-.

  1. Rim Decorative Ring 5C0 601 157 A
  2. Wheel Cover 5C0 601 149 D
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 565

5C0 601 025 G, 5C0 601 025 BT - "CIRCLE" aluminum rim

Fig 3: Identifying 5C0 601 025 G Wheel, Rim 5C0 601 157 A & Wheel Cover 5C0 601 149 D
GWWN44-10529Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rim 5C0 601 025 G is used together with rim decorative ring -1- and wheel cover -2-.

  1. Rim Decorative Ring 5C0 601 157 A
  2. Wheel Cover 5C0 601 149 D
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 565

5C0 601 025 M - aluminum rim "TURBINE"

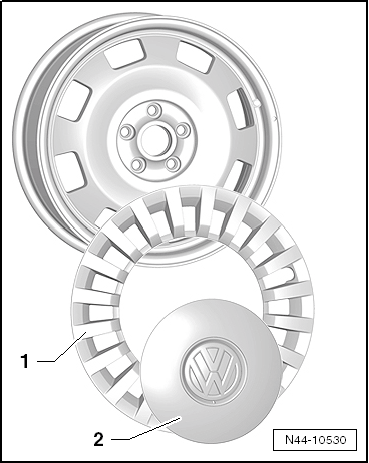

Fig 4: Identifying 5C0 601 025 M Wheel, Rim Trim Ring 5C0 601 157 & Wheel Cover 5C0 601 149 D
GWWN44-10530Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rim 5C0 601 025 G is used together with rim decorative ring -1- and wheel cover -2-.

  1. Rim Trim Ring 5C0 601 157
  2. Wheel Cover 5C0 601 149 D
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 565

5C0 601 025 AL - "ELBA" aluminum rim

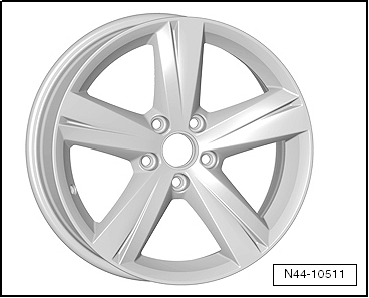

Fig 5: Identifying 5C0 601 025 A/AA - Wheel
GWWN44-10511Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 565

561 601 025 F - aluminum rim "SALAMANCA"

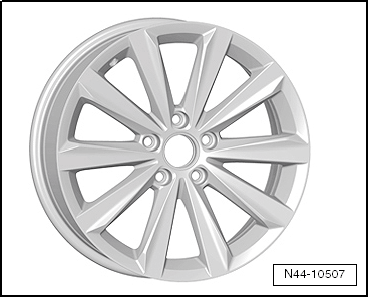

Fig 6: Identifying 1Q0 601 025 B - Wheel
GWWN44-10507Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 565

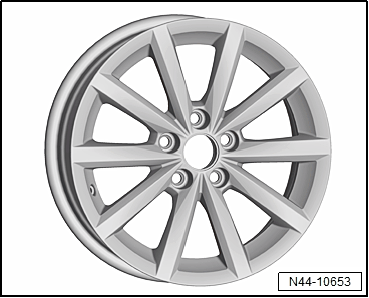

5C0 601 025 BE, 5C0 601 025 BF- "CUBA" aluminum rim

GWWN44-10653Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 590

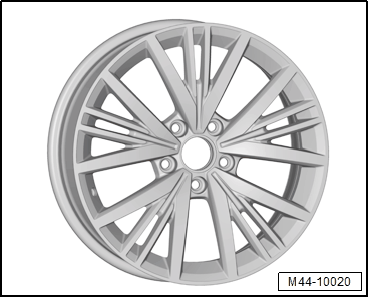

5C0 601 025 BQ - "LINAS" aluminum rim

GWWM44-10020Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 590

5N0 601 025 AJ - "PHILADELPHIA" aluminum rims

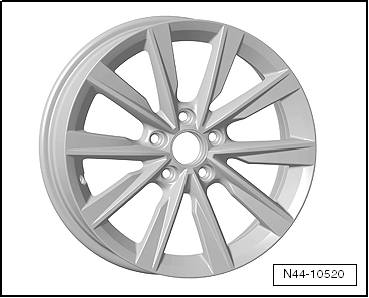

Fig 7: 5N0 601 025 S - Aluminum Rim "PHILADELPHIA"
GWWN44-10520Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 615

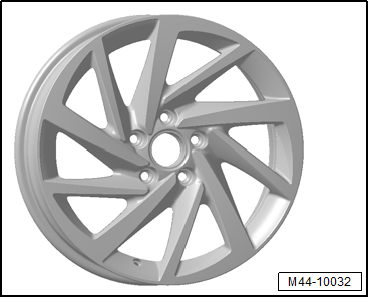

5C0 601 025 CC - "RAZOR" aluminum rims

GWWM44-10032Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 7 J x 17
Offset in mm: 43
Wheel load in kg: 590
