61/2 J X 16 ET44

WARNING: This page is about a different variant/trim than selected.
NOTE:

Always pay attention to the wheel/tire allocations to the respective engine types which are listed in the overview table.

Explanation of specifications on disc wheels: Refer to GENERAL INFORMATION .
Tightening specifications for wheel bolts: Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

561 601 027 - Steel Rim

Fig 1: 1J0 601 027 - Wheel
GWWN44-10071Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset in mm: 44
Wheel load in kg: 565

5C0 601 025 T - "MIKCA" Aluminum Rim

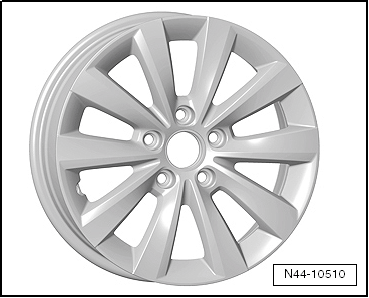

Fig 2: Identifying 561 601 025 & 5C0 601 025 T - Wheel
GWWN44-10510Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dimension: 61 /2 J x 16
Offset in mm: 44
Wheel load in kg: 565
