Overview - Door Handle And Door Lock
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

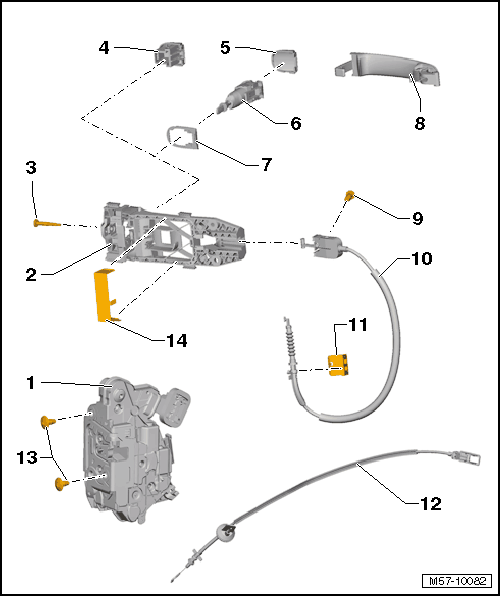

NOTE:
The figure shows the left side. The right side is identical.
- Door Lock
- Removing and installing, refer to DOOR LOCK .
- Bracket
- With Driver Window Lowering Microswitch -E621- /Front Passenger Window Lowering Microswitch -E622-
- Driver Window Lowering Microswitch -E621- /Front Passenger Window Lowering Microswitch -E622- cannot be replaced separately
- Removing and installing, refer to BRACKET .
- Bolt
- 3.5 Nm
- For lock cylinder
- Cap
- Without lock cylinder
- Removing and installing, refer to Installing .
- Cap
- For lock cylinder
- Removing and installing, refer to LOCK CYLINDER CAP .
- Lock Cylinder
- Removing and installing, refer to LOCK CYLINDER .
- Installed on the driver side door only
- Backing
- Door Handle
- Removing and installing, refer to DOOR HANDLE .
- Bolt
- 1.5 Nm
- Loosening this bolt loosens the bracket from the door.
- Cable
- From the door lock -1- to the bracket -3-
- Clips
- Cable
- From the interior door mechanism to the door lock -1-
- With a grommet on the cover
- Bolt
- 18 Nm
- Quantity: 2
- Bracket clip
