Overview - Turbocharger
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Banjo Bolt
- 30 Nm
- Oil Supply Line
- Check for clearance
- Before installing, fill the turbocharger with engine oil at the oil supply line connection
- Bolt
- 12 Nm
- Union Nut
- 22 Nm
- Exhaust Gas Temperature Sensor 1 -G235-
- Overview, refer to OVERVIEW - EXHAUST TEMPERATURE REGULATION .
- Bolt
- Tightening specification and sequence, refer to Fig 2.
- Bolt
- 15 Nm
- Heat Shield
- O-Ring
- Replace after removing
- Pulsation Damper
- Bolt
- 8 Nm
- Connection
- Bolt
- 8 Nm
- O-Ring
- Replace after removing
- Bracket
- For electric wires
- Bolt
- 15 Nm
- Heat Shield
- Turbocharger
- Removing and installing, refer to TURBOCHARGER .
- Seal
- Replace after removing
- Nut
- Replace after removing
- Tightening specification and sequence, refer to Fig 3.
- Bracket
- for emissions control module
- Bolt
Tightening specification and sequence, refer to Fig 2.
- Seal
- Replace after removing
- O-Ring
- Replace after removing
- Coat with engine oil
- Oil Return Line
- Bolt
- 10 Nm
- Ribbed Bolt
- 14 Nm
- Seals
- Replace after removing
-- Bring the bracket into the installed position.
-- Tighten the bolts in steps according to the sequence:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1, 2, 3, and 4- | Install all the way in by hand. |
| 2. | -2- | 20 Nm |
| 3. | -1- | 40 Nm |
| 4. | -3 and 4- | 40 Nm |
-- Tighten the bolts in steps according to the sequence:
| Step | Bolts | Tightening Specification |
|---|---|---|

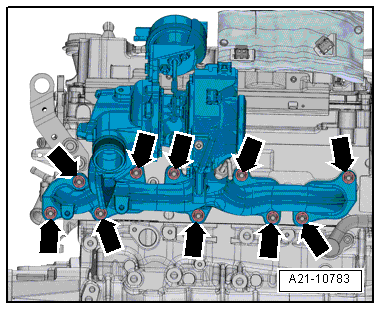

| 1. | -Arrows- | diagonal sequence starting from the inside and working outward 11 Nm |
| 2. | -Arrows- | tighten diagonally to 22 Nm from inside to outside |
| 3. | -Arrows- | tighten diagonally to 22 Nm from inside to outside
|
