Headlamp Range Control Module -J431-, Coupe

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

The Headlamp Range Control Module -J431- is installed on the glove compartment.

Removal

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the glove compartment, refer to REMOVAL AND INSTALLATION .

-- Disconnect the connector from the Headlamp Range Control Module -J431-.

-- Remove the bolts -arrows- from the Headlamp Range Control Module -J431- -1-.

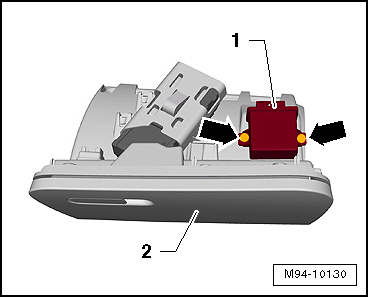

Fig 1: Identifying Headlamp Range Control Module With Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The Headlamp Range Control Module -J431- -1- can also be secured with adhesive pads.

-- Remove the Headlamp Range Control Module -J431- -1- from the glove compartment -2-.

Installation

Install in reverse order of removal. Note the following:

-- Check headlamp for functions.

Coding the Headlamp Range Control Module -J431- using the Vehicle Diagnostic Tester.

-- Perform basic setting of the headlamps, refer to HEADLAMP, PERFORMING BASIC SETTING .

Tightening Specifications

Refer to AUTOMATIC HEADLAMP RANGE ADJUSTMENT OVERVIEW .
