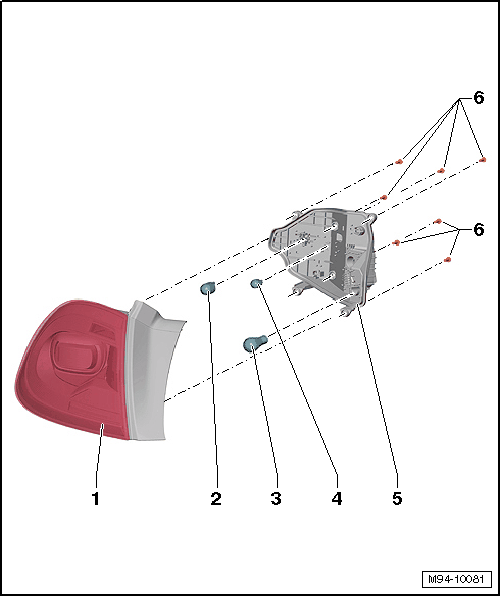

Tail Lamps Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Tail Lamp Housing
- Removal and installation, refer to TAIL LAMPS
- Left Brake/Tail Lamp Bulb -M21- /Right Brake/Tail Lamp Bulb -M22-
- Bulb: 12 V/21/5 W
- Replacing, refer to LEFT/RIGHT BRAKE/TAIL LAMP BULB -M21- / -M22-
- Left Rear Turn Signal Lamp -M6- /Right Rear Turn Signal Lamp -M8-
- Bulb: P21W/12 V
- Replacing, refer to LEFT/RIGHT TURN SIGNAL BULB -M18- / -M19-
- Left Back-Up Lamp -M16- /Right Back-Up Lamp -M17-
- Bulb: W16W/12 V
- Replacing, refer to BACK-UP LAMP BULB -M107-
- Bulb Holder
- Removal and installation, refer to BULB CARRIER
- Bolt
- 2 Nm
- Quantity: 7
