Exterior Rearview Mirror Lamps And Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
The Driver Exterior Rearview Mirror Turn Signal Bulb -L131- /Front Passenger Exterior Rearview Mirror Turn Signal Bulb -L132- (turn signal) are inside the exterior mirror housing.
In addition, there is a Driver Entry Lamp In Exterior Rearview Mirror -W52- /Front Passenger Entry Lamp In Exterior Rearview Mirror -W53-, located in each of the exterior rearview mirror housings that lights the dark entry area around the driver and passenger door.

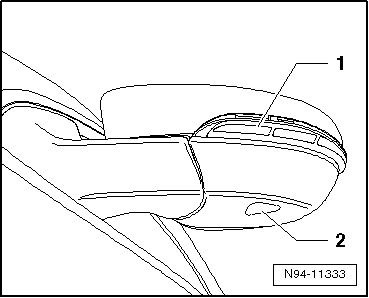

- Driver Exterior Rearview Mirror Turn Signal Bulb -L131- /Front Passenger Exterior Rearview Mirror Turn Signal Bulb -L132-
- Driver Entry Lamp In Exterior Rearview Mirror -W52- /Front Passenger Entry Lamp In Exterior Rearview Mirror -W53-
DTC Recognition And Display
The Driver Door Control Module -J386- /Front Passenger Door Control Module -J387- is equipped with OBD.
Use the Vehicle Diagnostic Tester in "Guided Fault Finding".
