Removal And Installation: Turbocharger: Removing

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING .

-- Remove the noise insulation. Refer to REMOVAL AND INSTALLATION .

-- Remove the right front wheel.

-- Remove the right front wheel housing liner. Refer to REMOVAL AND INSTALLATION .

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Disconnect the ignition coils with output stages connectors -arrows- and lay the wiring harness to the side.

Fig 1: Disconnecting Ignition Coil Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the coolant hose -arrow- from the coolant expansion tank.

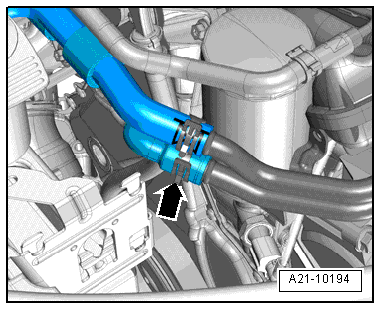

Fig 2: Disconnecting Coolant Line To Coolant Expansion Tank

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the vacuum hose -1- at the separating point -2- and free up the hose.

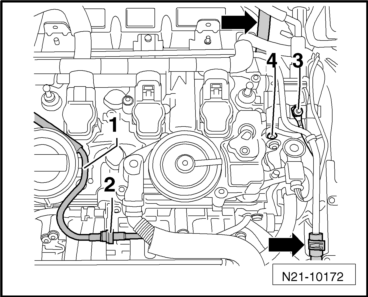

Fig 3: Identifying Vacuum Line -1-, Ground Wire -3- And Bolt -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coolant hoses -arrows- from the coolant pipe.

-- Remove the nut and ground wire -3- and remove the bolt -4-.

Fig 4: Identifying Charge Air Pipe Bolt -Arrow- And Hose Clamp -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the charge air pipe bolt -arrow-.

-- Loose the hose clamp -2- and lay the charge air pipe on the cylinder head.

-- Seal the turbocharger with a plug from the engine bung set VAS 6122.

-- Remove the bolts -1 though 3- and remove the heat shield and the coolant pipe.

Fig 5: Identifying Heat Shield Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Remove the heat shield bolt -2- using a 6 mm hex socket wrench -A-. The hex must be at least 5 cm -B- long. A socket that tapers to 6 mm at the tip is too wide.

Fig 6: Identifying 6 mm Hex Socket -A-, 5 cm Long -B-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the banjo bolt and oil supply pipe from the turbocharger -4-.

Fig 7: Identifying Heat Shield Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

Fig 8: Air Guide Pipe And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the clamps -1 and 2- and remove the charge air pipe.

-- Remove the right drive axle heat shield bolts -arrows- and shield.

Fig 9: Identifying Drive Axle Heat Shield Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front exhaust pipe with catalytic converter. Refer to FRONT EXHAUST PIPE WITH CATALYTIC CONVERTER .

-- Disconnect the connectors -1 and 2- and free up the wire -arrows-.

Fig 10: Identifying Turbocharger Electrical Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1- using the bit XZN 10T10154.

Fig 11: Identifying Turbocharger Support And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2-.

-- Remove the banjo bolt -2- and move the coolant pipe to the side.

Fig 12: Identifying Oil Return Line, Coolant Line And Oil Supply Line Fasteners

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1- for the oil return pipe.

-- Remove the bolt -3- for the oil supply pipe.

-- Disconnect the coolant hose -arrow- and move them to the side.

Fig 13: Coolant Hose Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -arrows-.

Fig 14: Identifying Turbocharger/Exhaust Manifold Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the turbocharger with exhaust manifold upward.
