Turbocharger Vacuum Diaphragm: Removing

WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the turbocharger. Refer to TURBOCHARGER .

-- Remove the circlip -arrow- from the vacuum diaphragm linkage.

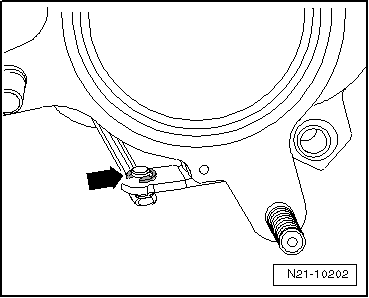

Fig 1: Identifying Circlip -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the vacuum hose -2- from the vacuum diaphragm -1-.

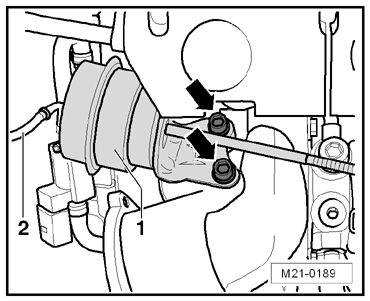

Fig 2: Identifying Vacuum Diaphragm Bolts -Arrows- And Diaphragm -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vacuum diaphragm bolts -arrows- and diaphragm -1- from the turbocharger.
