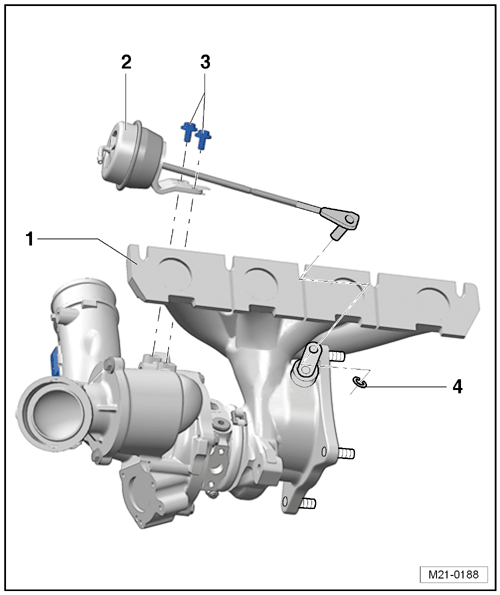

Vacuum Diaphragm
WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Turbocharger
- Can only be replaced with the exhaust manifold.
- Coat the stud bolts on the exhaust manifold with hot bolt paste .
- Removing and installing, refer to TURBOCHARGER .
- Turbocharger Vacuum Diaphragm
- Checking, refer to TURBOCHARGER VACUUM DIAPHRAGM, CHECKING .
- Removing and installing, refer to TURBOCHARGER VACUUM DIAPHRAGM .
- Bolt
- 10 Nm
- Circlip
