Charge Air Cooler System Overview

WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The charge air pipe clamps must be tightened to 5.5 Nm. An insufficient or excessive tightening torque can cause the charge air hose to come off the charge air pipe while driving.

NOTE:

Hose connections and charge air system hoses must be free of oil and grease before installing. The sealing ring and sealing surfaces on the connector couplings must only be lightly oiled. Refer to CHARGE AIR HOSE, DISCONNECTING AND CONNECTING .

Only use approved clamps for hose connections.

The charge air system must be properly sealed.

Use spring type clip pliers to install spring clamps.

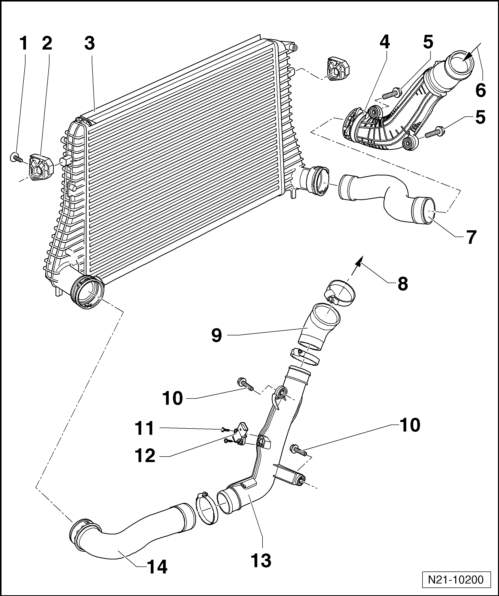

Fig 1: Charge Air Cooler System Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 5 Nm
Mount
- For the charge air cooler.
Charge Air Cooler
Charge Air Pipe
Bolt
- 10 Nm
from the Turbocharger
Charge Air Hose
- Installing, refer to CHARGE AIR HOSE, DISCONNECTING AND CONNECTING .
to the Throttle Valve Control Module -J338-
Charge Air Hose
Bolt
- 10 Nm
Bolt
- 5 Nm
Charge Air Pressure Sensor -G31-
Charge Air Pipe
Charge Air Hose
- Installing, refer to CHARGE AIR HOSE, DISCONNECTING AND CONNECTING .
