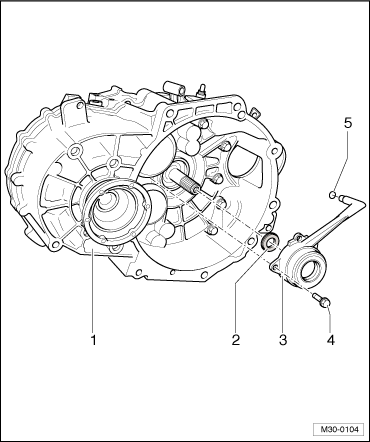

Clutch Release Mechanism Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Transmission
- Input Shaft Seal
- Removing and installing, refer to INPUT SHAFT SEAL .
- Clutch Slave Cylinder with Release Bearing
- Must be replaced together because they are a single unit.
- Do not wash the bearing, just wipe it off.
- Replace any loud bearings together with the clutch slave cylinder.
- Some clutch slave cylinders have a divided feed line, refer to Figure.
- Approximately from May 2011: release bearing with an additional plastic washer. Refer to Figure; pressure plate is adapted, refer to Figure.
- Allocation.
- Removing and installing, refer to CLUTCH SLAVE CYLINDER WITH RELEASE BEARING .
- Bolt
- 12 Nm for clutch slave cylinder with a metal cylinder housing (without locking fluid).
- 15 Nm for clutch slave cylinder with a plastic cylinder housing (with locking fluid).
- Always replace after removing.
- Carefully tighten diagonally in small stages so that the clutch slave cylinder bolt eyelets do not break off.
- Pay attention to the thread pitch on the bolt when cleaning the threaded hole in the clutch housing.
- Quantity: 3
- O-Ring
- Installed on the line connection.
- Install using brake fluid.
- Replace if damaged.
- Grease allocation.
