Vibration Damper Seal: Installing

WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

For the correct tightening specification, refer to RIBBED BELT DRIVE OVERVIEW .

-- Clean the running and sealing surface.

-- Remove the thrust piece T10368.

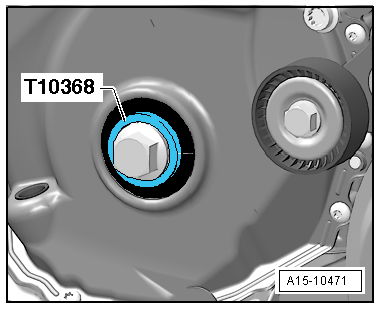

Fig 1: Identifying Special Tool T10368

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull in the seal -arrow- until seated using the thrust pieceT10354 and the vibration damper bolt.

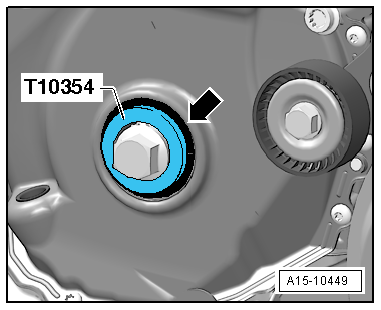

Fig 2: Identifying Thrust Piece T10354

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Replace the vibration damper bolt with O-ring -1-.

Fig 3: Identifying O-Ring And Tooth Contour

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Further installation is in the reverse order of removal.
