Instrument Cluster Indicator Lamp Symbols

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

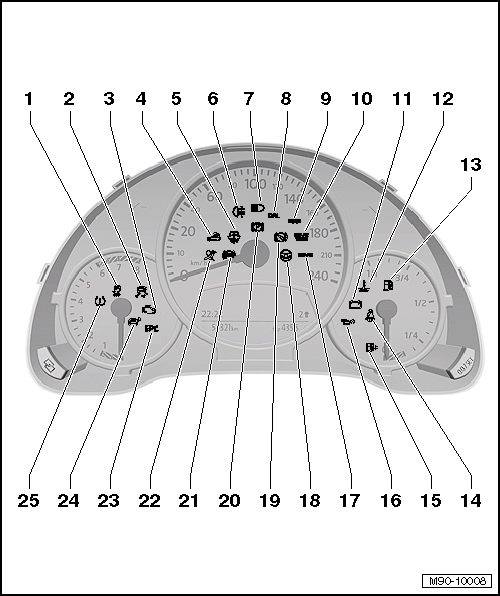

Fig 1: Identifying Instrument Cluster Indicator Lamp Symbols
GWWM90-10008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. ASR/ESP Indicator Lamp 2 -K216-
  2. ASR/ESP Indicator Lamp -K155-
  3. Malfunction Indicator Lamp -K83-
  4. Rear Lid -Open- Indicator Lamp -K127-
  5. Windshield Washer Fluid Level Indicator Lamp -K37-
  6. Rear Fog Lamp Indicator Lamp -K13-
  7. High Beam Indicator Lamp -K1-
  8. Daytime Running Lamp Indicator Lamp -K205-
  9. Cruise Control Indicator Lamp -K31-
  10. Brake Pad Wear Indicator Lamp -K32-
  11. Generator Indicator Lamp -K2-
  12. Low Engine Coolant Level Indicator Lamp -K36-
  13. Low Fuel Level Indicator Lamp -K16-
  14. Seat Belt Indicator Lamp -K19-
  15. Note: Refuel Immediately
  16. Oil Pressure Indicator Lamp -K3-
  17. Brake System Indicator Lamp -K118-
  18. Electro-Mechanical Power Steering Indicator Lamp -K161-
  19. Shift Lock Indicator Lamp -K169-
    • Only on vehicles with an automatic transmission
  20. Electro-Mechanical Parking Brake Indicator Lamp -K213-
  21. ABS Indicator Lamp -K47-
  22. Airbag Indicator Lamp -K75-
  23. Electronic Power Control Malfunction Indicator Lamp -K132-
  24. Fuel Filler Lid Lock Warning Lamp -K201-
  25. Tire Pressure Monitoring Display Indicator Lamp -K220-
