Special Tools

WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Cooling System Tester V.A.G 1274 B

Fig 1: Cooling System Tester V.A.G 1274 B
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Adapter V.A.G 1274/9

Fig 2: Adapter V.A.G 1274/9
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench (5-50 Nm)V.A.G 1331

Fig 3: Identifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hex Ball Socket T10058

Fig 4: Identifying Hex Ball Socket T10058
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Insert Tool 12mm T10360

Fig 5: Assembly Tool T10360
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Thrust Piece T10353

Fig 6: Identifying Thrust Piece T10353
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clamps up to 25 mm Dia.3094

Fig 7: 3094 Hose Clamps
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench V.A.G 1783

Fig 8: Identifying Torque Wrench (2 to 10 Nm) VAG 1783
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

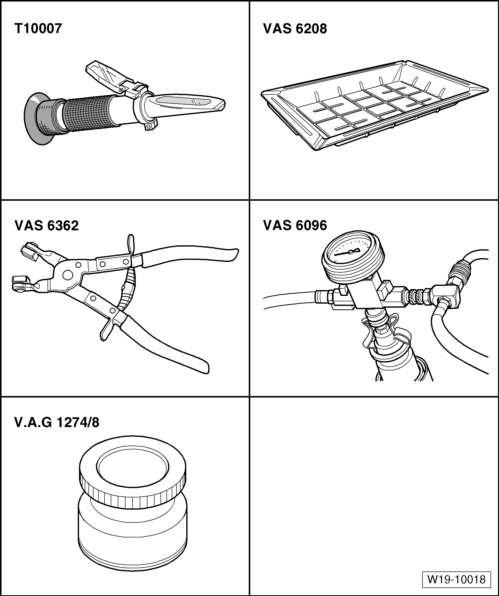

Fig 9: Identifying Cooling System Charge Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Refractometer T10007
Drip Tray for VAS 6100 VAS 6208
Hose Clip Pliers VAS 6362
Cooling System Charge Unit VAS 6096
Adapter V.A.G 1274/8
